ラジエータ、ラジエータ ホース＆ファン

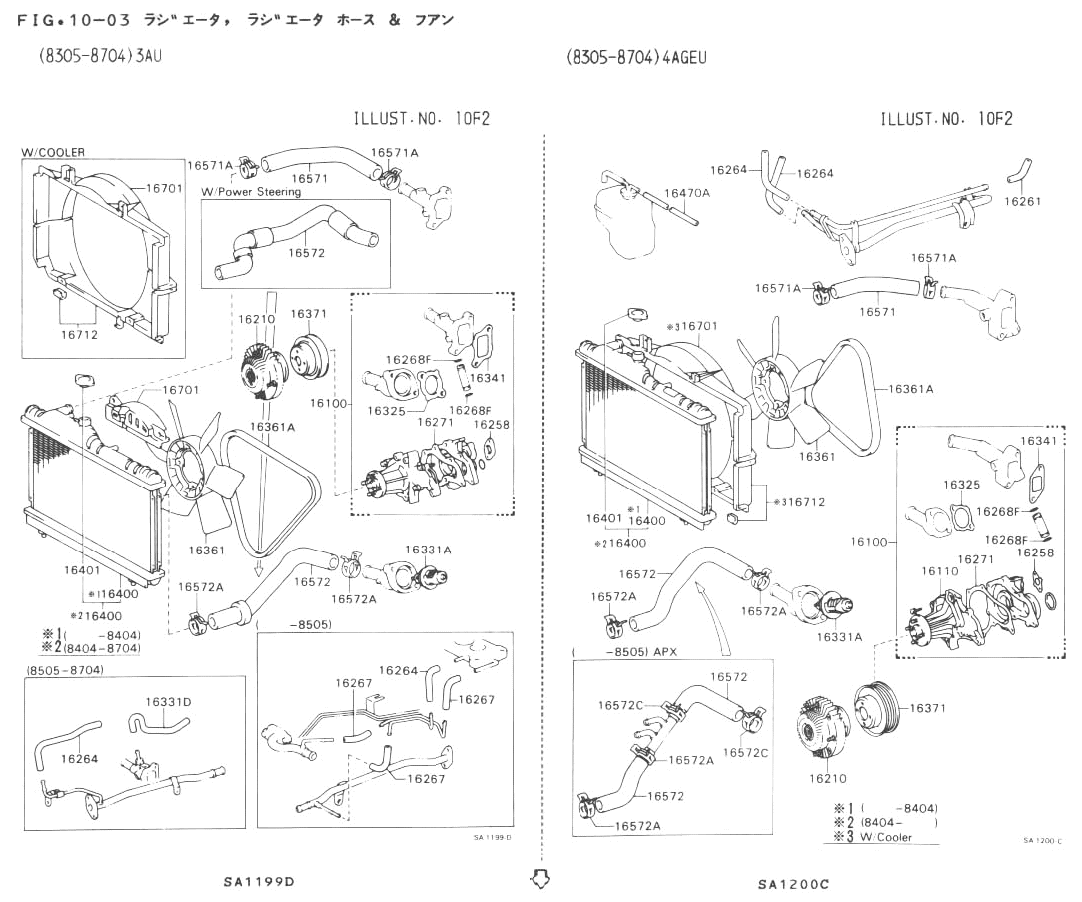

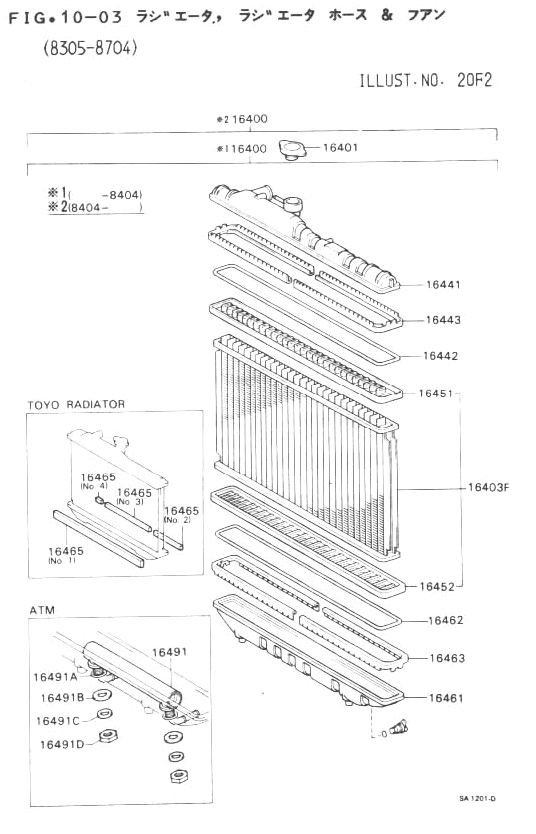

図面はこちら１ と こちら２ を右クリックして新しいウインドを開くと検索しやすいです。
| 始期−終期 | 適用形式 | 代 替 |
品 番 （備考） |
個 数 |
切替コード | ||
| 始 | 終 | ||||||
| 16100 ﾎﾟﾝﾌﾟ ｱｯｾﾝﾌﾞﾘ､ ｳｫｰﾀ | |||||||
| c | 8305-8704 | 3AU..AE85 | 16100-19036- | 1 | 11 | 160 | |
| c | 8305-8704 | 4AGEU..AE86 | 16100-19095- | 1 | 11 | 160 | |
| 16110 ﾎﾟﾝﾌﾟ ｱｯｾﾝﾌﾞﾘ､ ｳｫｰﾀ､ ﾚｽ ｶｯﾌﾟﾘﾝｸﾞ | |||||||
| c | 8401-8704 | 3AU..AE85 | 16110-15020- | 1 | 160 | ||
| c | 8305-8704 | 4AGEU..AE86 | 16110-16010- | 1 | 11 | 160 | |
| 16210 ｶｯﾌﾟﾘﾝｸﾞ ｱｯｾﾝﾌﾞﾘ､ ﾌﾙｰｲﾄﾞ | |||||||
| c | 8305-8704 | 3AU..AE85 | 16210-28020- | 1 | 11 | 160 | |
| c | 8305-8704 | 4AGEU..AE86 | 16210-16010- | 1 | 11 | 160 | |
| 16258 ｶﾞｽｹｯﾄ (ﾋｰﾀ ﾘﾀｰﾝ ﾖｳ) | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8# | 16258-15011- | 1 | 11 | 160 | |
| 16261 ﾎｰｽ､ ｳｫｰﾀ ﾊﾞｲﾊﾟｽ | |||||||
| c | 8305-8704 | 4AGEU..AE86 | 16261-16020- | 1 | 11 | 160 | |
| 16264 ﾎｰｽ､ ｳｫｰﾀ ﾊﾞｲﾊﾟｽ､ 2 | |||||||
| 8305-8505 | 3AU..AE85 | 16264-15040- | 1 | 11 | 100 | ||
| c | 8505-8704 | 3AU..AE85 | 16264-15050- | 1 | 101 | 160 | |
| c | 8305-8704 | 4AGEU..AE86 | 16264-16020- | 2 | 11 | 160 | |
| 16267 ﾎｰｽ､ ｳｫｰﾀ ﾊﾞｲﾊﾟｽ､ 3 | |||||||
| 8305-8308 | 3AU..AE85 | 99553-00100- | 3 | 11 | |||
| 8308-8505 | 3AU..AE85 | 99555-00100- | 3 | 100 | |||
| 16268F ﾘﾝｸﾞ､ 0 (ｳｫｰﾀ ﾊﾞｲﾊﾟｽ ﾊﾟｲﾌﾟ ﾖｳ) | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8# | 96711-24013- | 2 | 11 | 160 | |
| 16271 ｶﾞｽｹｯﾄ､ ｳｫｰﾀ ﾎﾟﾝﾌﾟ | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8# | 16124-15010- | 1 | 11 | 160 | |
| 16325 ｶﾞｽｹｯﾄ､ ｳｫｰﾀ ｲﾝﾚｯﾄ ﾊｳｼﾞﾝｸﾞ､ 1 | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8# | 16325-70021- | 1 | 11 | 160 | |
| 16331A ｻｰﾓｽﾀｯﾄ | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8# | 90916-13046- *WAX 82-95 |
1 | 11 | 160 | |
| 16331D ﾎｰｽ､ ｳｫｰﾀ ( ｳｫｰﾀ ｱｳﾄﾚｯﾄ ﾂｳ ｷｬﾌﾞﾚﾀ ﾖｳ ) | |||||||
| c | 8505-8704 | 3AU..AE85 | 16267-15010- | 1 | 101 | 160 | |
| 16341 ｶﾞｽｹｯﾄ､ ｳｫｰﾀ ｱｳﾄﾚｯﾄ | |||||||
| c | 8305-8704 | 3AU..AE85 | 16341-15011- | 1 | 11 | 160 | |
| c | 8305-8701 | 4AGEU..AE86 | # | 16341-16010- (16341-16020-) |
1 | 11 | |
| c | 8701-8704 | 4AGEU..AE86 | 16341-16020- | 1 | 160 | ||
| 16361 ﾌｧﾝ | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8# | 16361-16010- | 1 | 11 | 160 | |
| 16371 ﾌﾟｰﾘｰ､ ﾌｧﾝ | |||||||
| c | 8305-8704 | 3AU..AE85 | 16173-26021- | 1 | 11 | 160 | |
| 8305-8501 | 4AGEU..AE86 | # | 16371-16020- (16371-16021-) |
1 | 11 | ||
| c | 8501-8704 | 4AGEU..AE86 | 16371-16021- | 1 | 160 | ||
| 16400 ﾗｼﾞｴｰﾀ ｱｯｾﾝﾌﾞﾘ | |||||||
| 8305-8404 | 3AU..AE85..ATM | # | 16410-15231- (16400-15231-) |
1 | 11 | ||
| c | 8404-8704 | 3AU..AE85..ATM | 16400-15231- | 1 | 160 | ||
| 8305-8404 | 3AU,4AGEU..AE8#..MTM | # | 16410-15210- (16400-15210-) |
1 | 11 | ||
| c | 8404-8704 | 3AU,4AGEU..AE8#..MTM | 16400-15210- | 1 | 160 | ||
| c | 8505-8704 | 4AGEU..AE8#..ATM | 16400-16100- | 1 | 101 | 160 | |
| 16401 ｷｬｯﾌﾟ ｻﾌﾞ ｱｯｾﾝﾌﾞﾘ､ ﾗｼﾞｴｰﾀ | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8# | 16401-63010- DENSO |
1 | 11 | 160 | |
| 8305-8310 | 3AU,4AGEU..AE8#..MTM | 16401-71010- TOYO RADIATER |
1 | 11 | |||
| c | 8310-8704 | 3AU,4AGEU..AE8#..MTM | 16401-15210- TOYO RADIATER |
1 | 160 | ||
| 16403F ｺｱ ｻﾌﾞ ｱｯｾﾝﾌﾞﾘ､ ﾗｼﾞｴｰﾀ | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8#..ATM | 16403-15231- | 1 | 11 | 160 | |
| c | 8305-8704 | 3AU,4AGEU..AE8#..MTM | 16403-14030- DENSO |
1 | 11 | 160 | |
| c | 8305-8704 | 3AU,4AGEU..AE8#..MTM | 16403-15210- TOYO RADIATER |
1 | 11 | 160 | |
| 16441 ﾀﾝｸ､ ﾗｼﾞｴｰﾀ､ ｱｯﾊﾟ | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8#..MTM | 16441-15210- TOYO RADIATER |
1 | 11 | 160 | |
| c | 8350-8704 | 3AU,4AGEU..AE85*,86..MTM | 16441-15220- | 1 | 11 | 160 | |
| c | 8505-8704 | 4AGEU..AE86..ATM | 16441-16100- | 1 | 101 | 160 | |
| 16442 ﾘﾝｸﾞ､ 0 (ﾗｼﾞｴｰﾀ ｱｯﾊﾟ ﾀﾝｸ ﾖｳ) | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8#.. | 16442-14030- DENSO |
1 | 11 | 160 | |
| c | 8305-8704 | 3AU,4AGEU..AE8#..MTM | 16442-15210- TOYO RADIATER |
1 | 11 | 160 | |
| 16443 ﾌﾟﾚｰﾄ､ ﾗｼﾞｴｰﾀ ﾀﾝｸ､ ﾛｯｸ､ ｱｯﾊﾟ | |||||||
| 8305-8308 | 3AU,4AGEU..AE8# | # | 16443-14030- (16443-15301-) DENSO |
2 | 11 | ||
| c | 8308-8704 | 3AU,4AGEU..AE8# | 16443-15301- DENSO |
2 | 160 | ||
| c | 8305-8704 | 3AU,4AGEU..AE8#..MTM | 16443-15210- TOYO RADIATER |
2 | 11 | 160 | |
| 16451 ﾌﾟﾚｰﾄ､ ﾗｼﾞｴｰﾀ ｺｱ､ ｱｯﾊﾟ | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8# | 16451-14030- DENSO |
1 | 11 | 160 | |
| c | 8305-8704 | 3AU,4AGEU..AE8#..MTM | 16451-15210- TOYO RADIATER |
1 | 11 | 160 | |
| 16452 ﾌﾟﾚｰﾄ､ ﾗｼﾞｴｰﾀ ｺｱ､ ﾛﾜｰ | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8# | 16452-14030- DENSO |
1 | 11 | 160 | |
| c | 8305-8704 | 3AU,4AGEU..AE8#..MTM | 16451-15210- TOYO RADIATER |
1 | 11 | 160 | |
| 16461 ﾀﾝｸ､ ﾗｼﾞｴｰﾀ､ ﾛﾜｰ | |||||||
| c | 8305-8704 | 3AU..AE85..ATM | 16461-15230- | 1 | 11 | 160 | |
| c | 8305-8704 | 3AU,4AGEU..AE8#..MTM | 16461-15210- TOYO RADIATER |
1 | 11 | 160 | |
| c | 8305-8704 | 3AU,4AGEU..AE8#..MTM | 16461-15220- DENSO |
1 | 11 | 160 | |
| c | 8505-8704 | 4AGEU..AE86..ATM | 16461-16100- | 1 | 101 | 160 | |
| 16462 ﾘﾝｸﾞ､ 0 (ﾗｼﾞｴｰﾀ ﾛﾜｰ ﾀﾝｸ ﾖｳ) | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8# | 16462-14030- DENSO |
1 | 11 | 160 | |
| c | 8305-8704 | 3AU,4AGEU..AE8#..MTM | 16442-15210- TOYO RADIATER |
1 | 11 | 160 | |
| 16463 ﾌﾟﾚｰﾄ､ ﾗｼﾞｴｰﾀ ﾀﾝｸ､ ﾛｯｸ､ ﾛﾜｰ | |||||||
| 8305-8308 | 3AU,4AGEU..AE8# | # | 16463-14030- (16463-15300-) DENSO |
2 | 11 | ||
| c | 8308-8704 | 3AU,4AGEU..AE8# | 16463-15300- DENSO |
2 | 160 | ||
| c | 8305-8704 | 3AU,4AGEU..AE8#..MTM | 16443-15210- TOYO RADIATER |
2 | 11 | 160 | |
| 16465 ﾊﾟｯｷﾝ､ ﾗｼﾞｴｰﾀ | |||||||
| 8305-8403 | 3AU,4AGEU..AE8#..MTM | # | 16466-15210- (16467-15210-) NO.2,TOYO RADIATER |
1 | 11 | ||
| 8305-8403 | 3AU,4AGEU..AE8#..MTM | # | 16468-15210- (16467-15210-) NO.4,TOYO RADIATER |
1 | 11 | ||
| c | 8305-8704 | 3AU,4AGEU..AE8#..MTM | 16465-15210- NO.1 TOYO RADIATER |
1 | 11 | 160 | |
| c | 8305-8704 | 3AU,4AGEU..AE8#..MTM | 16467-15210- NO.3,TOYO RADIATER |
1 | 11 | 160 | |
| c | 8403-8704 | 3AU,4AGEU..AE8#..MTM | 16467-15210- NO.2,TOYO RADIATER,*H,L=122 |
1 | 160 | ||
| c | 8403-8704 | 3AU,4AGEU..AE8#..MTM | 16467-15210- NO.4,TOYO RADIATER,*H,L=25 |
1 | 160 | ||
| 16470A ﾎｰｽ (ﾗｼﾞｴｰﾀ ﾘｻﾞｰﾌﾞ ﾀﾝｸ ﾖｳ) | |||||||
| c | 8305-8704 | 4AGEU..AE86 | 90099-33534- | 1 | 11 | 160 | |
| 16491 ｸｰﾗ､ ｵｲﾙ ( ATM ﾖｳ ) | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8#..ATM | 16491-15230- | 1 | 11 | 160 | |
| 16491A ﾘﾝｸﾞ､ 0 ( ATM ｵｲﾙ ｸｰﾗ ﾖｳ ) | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8#..ATM | 16492-35080- | 2 | 11 | 160 | |
| 16491B ﾜｯｼｬ､ ﾌﾟﾚｰﾄ ( ATM ｵｲﾙ ｸｰﾗ ﾖｳ ) | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8#..ATM | 16493-15130- | 2 | 11 | 160 | |
| 16491C ﾜｯｼｬ､ ｽﾌﾟﾘﾝｸﾞ ( ATM ｵｲﾙ ｸｰﾗ ﾖｳ ) | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8#..ATM | 16494-15130- | 2 | 11 | 160 | |
| 16491D ﾅｯﾄ ( ATM ｵｲﾙ ｸｰﾗ ﾖｳ ) | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE8#..ATM | 16496-15130- | 2 | 11 | 160 | |
| 16571 ﾎｰｽ､ ﾗｼﾞｴｰﾀ ｲﾝﾚｯﾄ | |||||||
| 8305-8505 | 3AU..AE85 | # | 16571-15110- (16571-15130-) |
1 | 11 | 100 | |
| c | 8505-8704 | 3AU..AE85 | 16571-15130- | 1 | 101 | 160 | |
| c | 8305-8704 | 4AGEU..AE86 | 16571-16010- | 1 | 11 | 160 | |
| 16571A ｸﾗﾝﾌﾟ ｵｱ ｸﾘｯﾌﾟ､ ﾎｰｽ ( ﾗｼﾞｴｰﾀ ｲﾝﾚｯﾄ ﾖｳ ) | |||||||
| c | 8408-8704 | 3AU..AE85 | 90467-34001- | 2 | 160 | ||
| 8305-8408 | 3AU,4AGEU..AE8# | 90467-34001- | 2 | 11 | |||
| 8408-8601 | 4AGEU..AE86 | # | 90467-34002- (90467-34003-) RADIATER STDE |
1 | |||
| c | 8408-8704 | 4AGEU..AE86 | 90467-34001- ENGINE SIDE |
1 | 160 | ||
| c | 8601-8704 | 4AGEU..AE86 | 90467-34003- RADIATER SIDE |
1 | 160 | ||
| 16572 ﾎｰｽ､ ﾗｼﾞｴｰﾀ､ ｱｳﾄﾚｯﾄ | |||||||
| c | 8305-8704 | 3AU..AE85 | 16572-15160- | 1 | 11 | 160 | |
| c | 8305-8704 | 3AU..AE85 | 16572-15170- W/PS |
1 | 11 | 160 | |
| c | 8505-8704 | 4AGEU..AE86 | 16572-16010- | 1 | 160 | ||
| 8305-8505 | 4AGEU..AE86..APX | 16572-16020- ENGINE SIDE |
1 | 11 | 100 | ||
| 8305-8505 | 4AGEU..AE86..APX | 16573-16010- RADIATER SIDE |
1 | 11 | 100 | ||
| 8305-8505 | 4AGEU..AE86..GT,GTV | 16572-16010- | 1 | 11 | |||
| 16572A ｸﾗﾝﾌﾟ ｵｱ ｸﾘｯﾌﾟ､ ﾎｰｽ ( ﾗｼﾞｴｰﾀ ｱｳﾄﾚｯﾄ ﾖｳ､ 1 ) | |||||||
| 8505-8601 | 3AU,4AGEU..AE8# | # | 90467-34002- (90467-34003-) ENGINE SIDE |
1 | |||
| c | 8505-8704 | 3AU,4AGEU..AE8# | 90467-34001- RADIATER SIDE |
1 | 160 | ||
| c | 8601-8704 | 3AU,4AGEU..AE8# | 90467-34003- ENGINE SIDE |
1 | 160 | ||
| 8305-8505 | 3AU,4AGEU..AE85*,86..GT,GTV | 90467-34001- RADIATER SIDE |
1 | 11 | |||
| 8305-8505 | 3AU,4AGEU..AE85*,86..GT,GTV | # | 90467-34002- (90467-34003-) ENGINE SIDE |
1 | 11 | ||
| 8305-8505 | 4AGEU..A86..APX | 90467-34001- | 2 | 11 | 100 | ||
| 16572C ｸﾗﾝﾌﾟ ｵｱ ｸﾘｯﾌﾟ､ ﾎｰｽ ( ﾗｼﾞｴｰﾀ ｱｳﾄﾚｯﾄ ﾖｳ､ 1 ) | |||||||
| 8305-8505 | 4AGEU..AE86..APX | 90467-34001- PIPE SIDE |
1 | 11 | 100 | ||
| 8305-8505 | 4AGEU..AE86..APX | # | 90467-34002- (90467-34003-) ENGINE SIDE |
1 | 11 | 100 | |
| 16701 ｼｭﾗｳﾄﾞ ｻﾌﾞ ｱｯｾﾝﾌﾞﾘ､ ﾌｧﾝ | |||||||
| c | 8305-8704 | 3AU..AE85 | 16711-15130- | 1 | 11 | 160 | |
| c | 8305-8704 | 3AU,4AGEU..AE85*,86..MTM | 16711-15120- | 1 | 11 | 160 | |
| c | 8505-8704 | 4AGEU..AE86..ATM | 16711-16090- | 1 | 101 | 160 | |
| 16712 ｼｭﾗｳﾄﾞ､ ﾌｧﾝ､ 2 | |||||||
| c | 8305-8704 | 3AU,4AGEU..AE85*,86..MTM | 16712-15030- W/COOLER |
1 | 11 | 160 | |
| c | 8505-8704 | 4AGEU..AE86 | 16712-16020- W/COOLER |
1 | 101 | 160 | |
