ブレーキ セクション

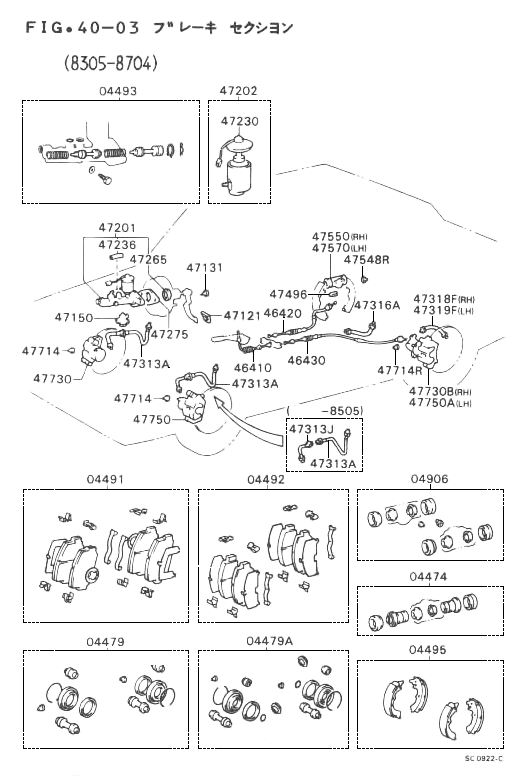

図面はこちらを右クリックして新しいウインドを開くと検索しやすいです。
| 始期−終期 | 適用形式 | 代 替 |
品 番 （備考） |
個 数 |
切替コード | ||
| 始 | 終 | ||||||
| 04474 ｼﾘﾝﾀﾞ ｷｯﾄ､ ﾘﾔ ﾎｲｰﾙ | |||||||
| c | 8305-8704 | AE85 | 04474-12020- | 2 | 11 | 160 | |
| 04479 ｼﾘﾝﾀﾞ ｷｯﾄ､ ﾃﾞｨｽｸ ﾌﾞﾚｰｷ､ ﾌﾛﾝﾄ | |||||||
| c | 8305-8704 | AE85 | 04479-12100- | 1 | 11 | 160 | |
| c | 8305-8704 | AE86 | 04479-14060- | 1 | 11 | 160 | |
| 04479A ｼﾘﾝﾀﾞ ｷｯﾄ､ ﾃﾞｨｽｸ ﾌﾞﾚｰｷ､ ﾘﾔ | |||||||
| c | 8305-8704 | AE86..GTV,APX | 04479-12110- | 1 | 11 | 160 | |
| 04491 ﾊﾟｯﾄﾞ ｷｯﾄ､ ﾃﾞｨｽｸ ﾌﾞﾚｰｷ､ ﾌﾛﾝﾄ | |||||||
| c | 8305-8410 | AE85 | # | 04491-12160- (04491-12161-) |
1 | 11 | |
| c | 8410-8704 | AE85 | 04491-12161- | 1 | 160 | ||
| c | 8305-8704 | AE86 | 04491-12190- | 1 | 11 | 160 | |
| 04492 ﾊﾟｯﾄﾞ ｷｯﾄ､ ﾃﾞｨｽｸ ﾌﾞﾚｰｷ､ ﾘﾔ | |||||||
| c | 8305-8704 | AE86..GTV,APX | 04492-12030- | 1 | 11 | 160 | |
| 04493 ｼﾘﾝﾀﾞ ｷｯﾄ､ ﾌﾞﾚｰｷ ﾏｽﾀ | |||||||
| c | 8305-8704 | AE8# | 04493-12120- | 1 | 11 | 160 | |
| 04495 ｼｭｰ ｷｯﾄ､ ﾘﾔ ﾌﾞﾚｰｷ | |||||||
| c | 8305-8704 | AE85 | 04495-12010- | 1 | 11 | 160 | |
| c | 8305-8704 | AE85 | 04497-12010- REBUILT |
1 | 11 | 160 | |
| c | 8305-8505 | AE86 | 04495-14010- | 1 | 11 | 100 | |
| c | 8305-8505 | AE86 | 04497-14010- REBUILT |
1 | 11 | 100 | |
| c | 8505-8704 | AE86..GT | 04495-14010- | 1 | 101 | 160 | |
| c | 8505-8704 | AE86..GT | 04497-14010- REBUILT |
1 | 101 | 160 | |
| 04906 ｶｯﾌﾟ ｷｯﾄ､ ﾘﾔ ﾎｲｰﾙ ｼﾘﾝﾀﾞ | |||||||
| c | 8305-8704 | AE85 | 04906-11031- | 1 | 11 | 160 | |
| c | 8305-8505 | AE86 | 04906-12040- | 1 | 11 | 100 | |
| c | 8505-8704 | AE86..GT | 04906-12040- | 1 | 101 | 160 | |
| 46410 ｹｰﾌﾞﾙ ｱｯｾﾝﾌﾞﾘ､ ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ､ 1 | |||||||
| 8305-8505 | AE8# | 46410-12120- RR DRUM BRAKE |
1 | 11 | 100 | ||
| c | 8505-8704 | AE8#..GL,SE,SR,GT | 46410-12120- RR DRUM BRAKE |
1 | 101 | 160 | |
| c | 8305-8704 | AE86..GTV,APX | 46410-12140- RR DISC BRAKE |
1 | 11 | 160 | |
| 46420 ｹｰﾌﾞﾙ ｱｯｾﾝﾌﾞﾘ､ ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ､ 2 | |||||||
| c | 8305-8704 | AE85 | 46420-12260- | 1 | 11 | 160 | |
| 8305-8505 | AE86 | 46420-12280- RR DRUM BRAKE |
1 | 11 | 100 | ||
| c | 8505-8704 | AE86..GT | 46420-12280- RR DRUM BRAKE |
1 | 101 | 160 | |
| c | 8305-8704 | AE86..GTV,APX | 46420-12300- RR DISC BRAKE |
1 | 11 | 160 | |
| 46430 ｹｰﾌﾞﾙ ｱｯｾﾝﾌﾞﾘ､ ﾊﾞｰｷﾝｸﾞ ﾌﾞﾚｰｷ､ 3 | |||||||
| c | 8305-8704 | AE85 | 46430-12160- | 1 | 11 | 160 | |
| 8305-8505 | AE86 | 46430-12180- RR DRUM BRAKE |
1 | 11 | 100 | ||
| c | 8505-8704 | AE86..GT | 46430-12180- RR DRUM BRAKE |
1 | 101 | 160 | |
| c | 8305-8704 | AE86..GTV,APX | 46430-12200- RR DISC BRAKE |
1 | 11 | 160 | |
| 47121 ﾊﾟｯﾄﾞ､ ﾌﾞﾚｰｷ ﾍﾟﾀﾞﾙ | |||||||
| c | 8305-8704 | AE8#..ATM | 47121-12020- | 1 | 11 | 160 | |
| c | 8305-8704 | AE8#..MTM | 31321-12030- | 1 | 11 | 160 | |
| 47131 ｸｯｼｮﾝ (ｽﾄｯﾌﾟ ﾗﾝﾌﾟ ｽｲｯﾁ ﾖｳ) | |||||||
| c | 8305-8704 | AE8# | 90541-06008- | 1 | 11 | 160 | |
| 47150 ﾊﾞﾙﾌﾞ ｱｯｾﾝﾌﾞﾘ､ ﾌﾟﾛﾎﾟｰｼｮﾆﾝｸﾞ | |||||||
| c | 8305-8704 | AE85 | 47150-12031- | 1 | 11 | 160 | |
| 8305-8505 | AE86 | 47150-12041- RR DRUM BRAKE |
1 | 11 | 100 | ||
| c | 8505-8704 | AE86..GT | 4750-12041- RR DRUM BRAKE |
1 | 101 | 160 | |
| c | 8305-8704 | AE86..GTV,APX | 4750-12031- RR DISC BRAKE |
1 | 11 | 160 | |
| 47201 ｼﾘﾝﾀﾞ ｻﾌﾞ ｱｯｾﾝﾌﾞﾘ､ ﾌﾞﾚｰｷ ﾏｽﾀ | |||||||
| c | 8305-8312 | AE8# | 47201-12340- BOOSTER=AISAN OR JKC |
1 | 11 | ||
| c | 8312-8704 | AE85 | 47201-12340- BOOSTER=AISAN OR JKC |
1 | 160 | ||
| c | 8312-8704 | AE86 | 47201-12350- BOOSTER=NISSIN |
1 | 160 | ||
| 47202 ﾘｻﾞｰﾊﾞ ｻﾌﾞ ｱｯｾﾝﾌﾞﾘ､ ﾌﾞﾚｰｷ ﾏｽﾀ | |||||||
| c | 8305-8704 | AE8# | 47202-12240- | 1 | 11 | 160 | |
| 47230 ｷｬｯﾌﾟ ｱｯｾﾝﾌﾞﾘ､ ﾌﾞﾚｰｷ ﾏｽﾀ ｼﾘﾝﾀﾞ ﾘｻﾞｰﾊﾞ ﾌｨﾗ | |||||||
| c | 8305-8704 | AE8# | 84460-20051- | 1 | 11 | 160 | |
| 47236 ﾁｭｰﾌﾞ､ ﾘｻﾞｰﾊﾞ ﾌﾞﾚｰｷ | |||||||
| c | 8305-8704 | AE8# | 47234-14010- | 1 | 11 | 160 | |
| 47265 ﾌﾞｰﾂ､ ﾏｽﾀ ｼﾘﾝﾀﾞ | |||||||
| c | 8305-8704 | AE8# | 47265-20050- | 1 | 11 | 160 | |
| 47275 ｶﾞｽｹｯﾄ､ ﾌﾞﾚｰｷ ﾏｽﾀ ｼﾘﾝﾀﾞ | |||||||
| 8305-8312 | AE8# | 47275-14010- BOOSTER=AISAN OR JKC |
1 | 11 | |||
| c | 8312-8704 | AE85 | 47275-14010- BOOSTER=AISAN OR JKC |
1 | 160 | ||
| c | 8312-8704 | AE86 | 47275-12010- BOOSTER=NISSIN |
1 | 160 | ||
| 47313A ﾎｰｽ､ ﾌﾚｷｼﾌﾞﾙ (ﾌﾛﾝﾄ ﾖｳ) | |||||||
| 8305-8505 | AE8# | 90947-02393- | 2 | 11 | 100 | ||
| c | 8505-8704 | AE8# | 90947-02476- | 2 | 101 | 160 | |
| 47313J ﾎｰｽ､ ﾌﾚｷｼﾌﾞﾙ (ﾌﾛﾝﾄ ﾖｳ) | |||||||
| 8305-8505 | AE8# | 90947-02224- | 2 | 11 | 100 | ||
| 47316A ﾎｰｽ､ ﾌﾚｷｼﾌﾞﾙ (ﾘﾔ ﾌﾞﾚｰｷ ﾁｭｰﾌﾞ ﾖｳ) | |||||||
| c | 8305-8704 | AE8# | 96940-32805- | 1 | 11 | 160 | |
| 47318F ﾎｰｽ､ ﾌﾚｷｼﾌﾞﾙ (ﾘﾔ ﾗｲﾄ ﾖｳ) | |||||||
| c | 8305-8704 | AE86..GTV,APX | 96940-32555- | 1 | 11 | 160 | |
| 47319F ﾎｰｽ､ ﾌﾚｷｼﾌﾞﾙ (ﾘﾔ ﾚﾌﾄ ﾖｳ) | |||||||
| c | 8305-8704 | AE86..GTV,APX | 96940-32555- | 1 | 11 | 160 | |
| 47496 ﾌﾟﾗｸﾞ､ ﾎｰﾙ (ﾘﾔ ﾌﾞﾚｰｷ ﾖｳ) | |||||||
| 8305-8505 | AE8# | 47491-20011- | 2 | 11 | 100 | ||
| c | 8505-8704 | AE8#..GL,SE,SR,GT | 47491-20011- | 2 | 101 | 160 | |
| 47548R ｷｬｯﾌﾟ､ ﾌﾞﾘｰﾀﾞ ﾌﾟﾗｸﾞ (ﾄﾞﾗﾑ ﾌﾞﾚｰｷ､ ﾘﾔ ﾖｳ) | |||||||
| 8305-8505 | AE8# | 31478-30010- | 2 | 11 | 100 | ||
| c | 8505-8704 | AE8#..GL,SE,SR,GT | 31478-30010- | 2 | 101 | 160 | |
| 47550 ｼﾘﾝﾀﾞ ｱｯｾﾝﾌﾞﾘ､ ﾘﾔ ﾎｲｰﾙ ﾌﾞﾚｰｷ (ﾗｲﾄ､ ﾌﾛﾝﾄ ｵｱ ｱｯﾊﾟ ﾖｳ) | |||||||
| c | 8305-8704 | AE85 | 47550-19165- | 1 | 11 | 160 | |
| 8305-8505 | AE86 | # | 47550-19135- (47550-12060-) |
1 | 11 | 100 | |
| 8505-8608 | AE86..GT | # | 47550-19135- (47550-12060-) |
1 | 101 | ||
| c | 8608-8704 | AE86..GT | 47550-12060- | 1 | 160 | ||
| 47570 ｼﾘﾝﾀﾞ ｱｯｾﾝﾌﾞﾘ､ ﾘﾔ ﾎｲｰﾙ ﾌﾞﾚｰｷ (ﾚﾌﾄ､ ﾌﾛﾝﾄ ｵｱ ｱｯﾊﾟ ﾖｳ) | |||||||
| c | 8305-8704 | AE85 | 47550-19165- | 1 | 11 | 160 | |
| 8305-8505 | AE86 | # | 47550-19135- (47550-12060-) |
1 | 11 | 100 | |
| 8505-8608 | AE86..GT | # | 47550-19135- (47550-12060-) |
1 | 101 | ||
| c | 8608-8704 | AE86..GT | 47550-12060- | 1 | 160 | ||
| 47714 ｷｬｯﾌﾟ､ ﾌﾞﾘｰﾀﾞ ﾌﾟﾗｸﾞ (ﾃﾞｨｽｸ ﾌﾞﾚｰｷ､ ﾌﾛﾝﾄ ﾖｳ) | |||||||
| c | 8305-8704 | AE8# | 31478-30010- | 2 | 11 | 160 | |
| 47714R ｷｬｯﾌﾟ､ ﾌﾞﾘｰﾀﾞ ﾌﾟﾗｸﾞ (ﾃﾞｨｽｸ ﾌﾞﾚｰｷ､ ﾘﾔ ﾖｳ) | |||||||
| c | 8305-8704 | AE86..GTV,APX | 31478-30010- | 2 | 11 | 160 | |
| 47730 ｼﾘﾝﾀﾞ ｱｯｾﾝﾌﾞﾘ､ ﾃﾞｨｽｸ ﾌﾞﾚｰｷ､ ﾗｲﾄ | |||||||
| c | 8305-8704 | AE85 | 47730-12240- | 1 | 11 | 160 | |
| c | 8305-8704 | AE86 | 47730-12180- | 1 | 11 | 160 | |
| 47730B ｼﾘﾝﾀﾞ ｱｯｾﾝﾌﾞﾘ､ ﾃﾞｨｽｸ ﾌﾞﾚｰｷ､ ﾘﾔ ﾗｲﾄ | |||||||
| 8305-8408 | AE86..GTV,APX | # | 47730-12230- (47730-12231-) |
1 | 11 | 56 | |
| c | 8408-8704 | AE86..GTV,APX | 47730-12231- | 1 | 57 | 160 | |
| 47750 ｼﾘﾝﾀﾞ ｱｯｾﾝﾌﾞﾘ､ ﾃﾞｨｽｸ ﾌﾞﾚｰｷ､ ﾚﾌﾄ | |||||||
| c | 8305-8704 | AE85 | 47750-12240- | 1 | 11 | 160 | |
| c | 8305-8704 | AE86 | 47750-12180- | 1 | 11 | 160 | |
| 47750A ｼﾘﾝﾀﾞ ｱｯｾﾝﾌﾞﾘ､ ﾃﾞｨｽｸ ﾌﾞﾚｰｷ､ ﾘﾔ ﾚﾌﾄ | |||||||
| 8305-8408 | AE86..GTV,APX | # | 47750-12230- (47750-12231-) |
1 | 11 | 56 | |
| c | 8408-8704 | AE86..GTV,APX | 47750-12231- | 1 | 57 | 160 | |
